Setting up wireless networking on my Raspberry Pi (and partially failing)
=========================================================================
My Aim
------
I want my Raspi (model B) to be able to connect to wireless networks.
As the board has no built-in wlan capabilities I just purchased an USB
wlan device.
After some research I found some models that would be supported by the
Raspberry respective by the raspbian linux. One was
- Belkin Wireless G USB adapter, Model F5D7050.
Unfortunately this model (and others) was out of stock at my local
electronics trader but the closest model I found was this
- Model F7D1101qde
The guy at the desk was not sure if it would run on a debian/linux
system but it was only 12 Euros (about 16 US$) ... 'so what', I thought.
.jpg)
What you need
-------------
- Your Raspi, eventually connected via ethernet cable (for installing
new drivers; eth0 should be up)
- The USB wlan device
- For the case Raspi's network won't come up after reconfiguration
you might need:
- an HDMI cable
- an USB keyboard
- an USB mouse
- an USB Hub (you cannot connect the Wireless USB, keyboard AND
mouse to a two-port connector ;)
After unpacking the device I immediately connected it to my Raspi;
unluckily the device is pretty thick so it physically blocks both USB
ports when connected!
Note: fortunately I found an USB extension cable in my wire box so I
would not have to give up using my USB storage connected to the
Raspi (which is mounted on /var/www ^^).

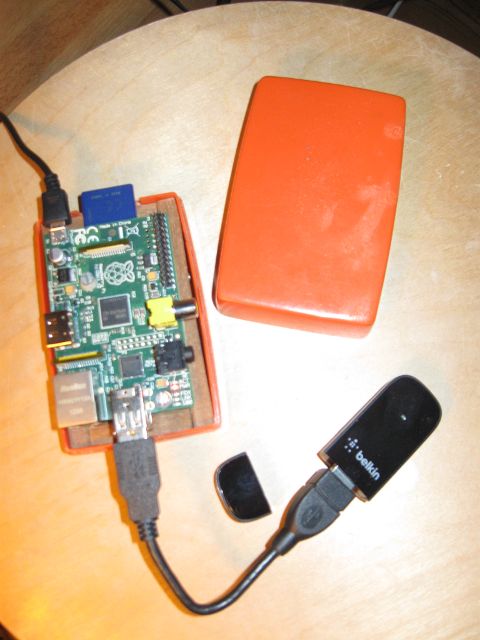

.jpg)
My raspbian detected the device via hotplug and modified my
/etc/network/interfaces automatically:
auto lo
iface lo inet loopback
iface eth0 inet dhcp
allow-hotplug wlan0
iface wlan0 inet manual
wpa-roam /etc/wpa_supplicant/wpa_supplicant.conf
iface default inet dhcp
# END /etc/network/interfaces
Going to follow the instructions on
http://omer.me/2012/04/setting-up-wireless-networks-under-debian-on-ra
spberry-pi/
First I listed my usb devices to check if the wlan stick was really and
correctly detected:
> lsusb
[...]
Bus 001 Device 004: ID 050d:945a Belkin Components F7D1101 v1 Basic Wir\
eless Adapter [Realtek RTL8188SU]
Note: I skipped the first instruction steps because the firmware-realtek
module was already installed on my system.
Thank you raspbian developers!
And, hey!, the device was already able to scan the area for local
networks
> iwlist wlan0 scan
wlan0 Scan completed :
Cell 01 - Address: 1C:C6:3C:03:85:4A
ESSID:"WLAN-038581 Javierr"
Protocol:IEEE 802.11bgn
Mode:Master
Frequency:2.412 GHz (Channel 1)
Encryption key:on
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 11 Mb/s; 6 Mb/s
9 Mb/s; 12 Mb/s; 18 Mb/s; 24 Mb/s; 36 Mb/s
48 Mb/s; 54 Mb/s
Extra:wpa_ie=dd1a0050f20101000050f20202000050f20400\
50f20201000050f202
IE: WPA Version 1
Group Cipher : TKIP
Pairwise Ciphers (2) : CCMP TKIP
Authentication Suites (1) : PSK
Extra:rsn_ie=30180100000fac020200000fac04000fac0201\
00000fac020000
IE: IEEE 802.11i/WPA2 Version 1
Group Cipher : TKIP
Pairwise Ciphers (2) : CCMP TKIP
Authentication Suites (1) : PSK
IE: Unknown: DD910050F204104A0001101044000102104100\
0100103B00010310470010000000000000000300001CC63C03854A1021000B436F72706\
F726174696F6E10230009564756393533414B5710240008312E32302E3030301042000A\
4A3230333038353733311054000800060050F204000110110014576972656C657373205\
26F757465722857464129100800020084103C000103
Signal level=60/100
Cell 02 - Address: 00:1D:19:E3:35:A8
ESSID:"SupaTuba"
Protocol:IEEE 802.11bg
Mode:Master
Frequency:2.412 GHz (Channel 1)
Encryption key:on
Bit Rates:1 Mb/s; 2 Mb/s; 5.5 Mb/s; 6 Mb/s; 9 Mb/s
11 Mb/s; 12 Mb/s; 18 Mb/s; 24 Mb/s; 36 Mb\
/s
48 Mb/s; 54 Mb/s
[...] and so on.
Step 2: setting up the wpa config
---------------------------------
As described in the Raspberry User Guide I changed my
/etc/network/interfaces
and now it looks like this:
auto lo
iface lo inet loopback
iface eth0 inet dhcp
allow-hotplug wlan0
# [2013-02-03; Ikaros Kappler]
# This line was:
# iface wlan0 inet manual
iface wlan0 inet dhcp
# I also added this line as described the the Rasbperry manual
wpa-conf /etc/wpa.conf
wpa-roam /etc/wpa_supplicant/wpa_supplicant.conf
iface default inet dhcp
# END /etc/network/interfaces
Note: this is not the final version. Please continue reading to the end
of this document. I wrote it to remember what might go wrong
during the installation of the wifi device.
The file /etc/wpa.conf does not yet exist. So let's create it.
> sudo emacs /etc/wpa.conf
# @author Ikaros Kappler
# @date 2013-02-03
network={
ssid="my wpa network SSID"
proto=RSN
key_mgmt=WPA-PSK
pairwise=CCMP TKIP
group=CCMP TKIP
psk="my wpa network password"
key_mgmt=NONE
}
# END /etc/wpa.conf
So far, so good. Let's restart all network interfaces:
> sudo /etc/init.d/networking restart
[warn] Running /etc/init.d/networking restart is deprecated because it \
may not re-enable some interfaces ... (warning).
[....] Reconfiguring network interfaces...Internet Systems Consortium D\
HCP Client 4.2.2
Copyright 2004-2011 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Listening on LPF/eth0/b8:27:eb:af:a7:90
Sending on LPF/eth0/b8:27:eb:af:a7:90
Sending on Socket/fallback
DHCPRELEASE on eth0 to 192.168.1.1 port 67
And now NOTHING MORE HAPPENED.
As I was using a SSH connection to my Raspi I thought the connection was
lost on network restart.
But reconnecting failed ;(
Even ping did not respone so the ethernet interface was not reachable
any more:
> ping 192.168.1.109
PING 192.168.1.109 (192.168.1.109) 56(84) bytes of data.
From 192.168.1.113 icmp_seq=1 Destination Host Unreachable
...
So I ran a network scan to check if maybe the DHCP discover failed and
my Raspi got a new local IP address assigned:
> nmap -sP 192.168.1.*
Starting Nmap 5.21 ( http://nmap.org ) at 2013-02-03 18:21 CET
Nmap scan report for 192.168.1.1
Host is up (0.00082s latency).
Nmap scan report for 192.168.1.100
Host is up (0.081s latency).
Nmap scan report for 192.168.1.105
Host is up (0.079s latency).
Nmap scan report for 192.168.1.113
Host is up (0.00010s latency).
Nmap done: 256 IP addresses (4 hosts up) scanned in 2.93 seconds
... but all hosts in this list are known and definitely NOT my Raspi:
not eth0 (wired) nor wlan0.
I DIS- AND RE-CONNECTED THE WHOLE RASPI AND RESTARTED IT COMPLETELY.
Et voilá the network was back on line.
I re-checked my /etc/wpa.conf and there were really typos in my network
password; changed the file, saved and now I was a bit more clever and
just brought up wlan0 only instead of restarting the whole network :)
> sudo ifup wlan0
wpa_supplicant: wpa-roam can only be used with the "manual" inet METHOD
run-parts: /etc/network/if-pre-up.d/wpasupplicant exited with return co\
de 1
Internet Systems Consortium DHCP Client 4.2.2
Copyright 2004-2011 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Listening on LPF/wlan0/ec:1a:59:30:28:6a
Sending on LPF/wlan0/ec:1a:59:30:28:6a
Sending on Socket/fallback
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 3
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 3
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 7
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 7
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 17
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 16
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 8
No DHCPOFFERS received.
Unable to obtain a lease on first try. Exiting.
Failed to bring up wlan0.
The first line tells what is definitely wrong:
wpa_supplicant: wpa-roam can only be used with the "manual" inet METHOD
so I commented out the line. My /etc/network/interfaces now looks like
this:
auto lo
iface lo inet loopback
iface eth0 inet dhcp
allow-hotplug wlan0
# [2013-02-03; Ikaros Kappler]
# This line was:
# iface wlan0 inet manual
iface wlan0 inet dhcp
# I also added this line as described the the Rasbperry manual
wpa-conf /etc/wpa.conf
# wpa_supplicant: wpa-roam can only be used with the "manual" inet METH\
OD
# wpa-roam /etc/wpa_supplicant/wpa_supplicant.conf
iface default inet dhcp
# END /etc/network/interfaces
Now let's try to get the interface up:
> sudo ifup wlan0
Internet Systems Consortium DHCP Client 4.2.2
Copyright 2004-2011 Internet Systems Consortium.
All rights reserved.
For info, please visit https://www.isc.org/software/dhcp/
Listening on LPF/wlan0/ec:1a:59:30:28:6a
Sending on LPF/wlan0/ec:1a:59:30:28:6a
Sending on Socket/fallback
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 3
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 5
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 7
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 9
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 21
DHCPDISCOVER on wlan0 to 255.255.255.255 port 67 interval 16
No DHCPOFFERS received.
Unable to obtain a lease on first try. Exiting.
Failed to bring up wlan0.
Darn :(
I got flipped by always loosing the network/SSH connection on network
restart after reconfiguration. I connected my USB keyboard and mouse
such as the Raspi's video output to my monitor (better to enqueue your
favorite songs into your mp3 playlist as you won't see your home desktop
for some time now ...).
< imagine the Balrog here >
Finally after spending hours on trying different wpa configurations,
different wpa password types, re-cheking my router and trying different
auth methods, channels, trying the network-manager, wpa_gui on LXDE (the
connection could be established for about 15 seconds with that, then
broke down with status code 15) I ended up with a plain and oldschool
like static interface configuration like this:
auto lo
auto eth0
auto wlan0
iface lo inet loopback
iface eth0 inet dhcp
iface wlan0 inet static
address 192.168.1.10
netmask 255.255.255.0
gateway 192.168.1.1
wpa-ssid "my network SSID"
wpa-psk "my network password"
wpa-roam /etc/wpa_supplicant/wpa_supplicant.conf
iface default inet dhcp
# END /etc/network/interfaces
Additionally I slightly modified the /etc/wpa.conf file by changing the
'psk' value to a hexadecimal/binary key (but I don't think this makes a
difference). You can get this representation by:
> wpa_passphrase <your_network_SSID> <your_network_password>
This tool prints out a minimal configuration:
network={
ssid="your netwrk SSID"
#psk="your network password"
psk=<a hexadecimal password hash representation>
}
Copy the second 'psk'-line (the hexadecimal one) and insert it into your
/etc/wpa.conf settings.
Typing
> sudo ifup wlan0
just terminated without any messages. No message hopefully also means no
error message (I already assumed and hoped for semi success). Let's take
a peek at the current network interface configuration:
> ifconfig
eth0 Link encap:Ethernet HWaddr b8:27:eb:af:a7:90
UP BROADCAST MULTICAST MTU:1492 Metric:1
RX packets:4894 errors:0 dropped:0 overruns:0 frame:0
TX packets:4069 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:4117378 (3.9 MiB) TX bytes:596341 (582.3 KiB)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
UP LOOPBACK RUNNING MTU:16436 Metric:1
RX packets:321 errors:0 dropped:0 overruns:0 frame:0
TX packets:321 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:33457 (32.6 KiB) TX bytes:33457 (32.6 KiB)
wlan0 Link encap:Ethernet HWaddr ec:1a:59:30:28:6a
inet addr:192.168.1.110 Bcast:192.168.1.255 Mask:255.255.25\
5.0
UP BROADCAST RUNNING MULTICAST MTU:1492 Metric:1
RX packets:9603 errors:0 dropped:187 overruns:0 frame:0
TX packets:1911 errors:0 dropped:5 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:3040078 (2.8 MiB) TX bytes:296103 (289.1 KiB)
The 'inet addr' attribute for interface wlan0 exists and has my
configured value! At least my static IP address was accepted, such as
defined in the /etc/network/interfaces file.
Note: I encountered routers that do not accept static IP addresses unless
the hardware address is white listed (see you router configuration,
usually at http:/192.168.1.1).
So the wireless internet connection seemed to be available on my Raspi.
I disconnected the ethernet cable (all network LEDs faded; it seems the
LEDs only indicate wired network connectivity) and finally my
CONFIGURATION WORKED! ^^
> ping www.fefe.de
PING www.fefe.de (80.190.240.67) 56(84) bytes of data.
64 bytes from ioctl.codeblau.de (80.190.240.67): icmp_req=1 ttl=58 time\
=55.2 ms
...
Yay, time for a beer.
Note 1: Actually I DIDN'T get my DHCP client running on my raspi, but as
long as it stays in my room (inside my network) using its static
IP address this should not matter.
Note 2: In the past years I encountered wireless/DHCP/WPA configuration
on debian (and debian like derivates like ubuntu or raspbian)
as extremly problematic --- or at least very hard to set up
manually.
Note 3: There is a shell script which automatically detects your wifi
device, downloads additional drivers and configures your network
at
http://www.raspberrypi.org/phpBB3/viewtopic.php?f=26&t=6256
--> http://dl.dropbox.com/u/80256631/install-rtl8188cus.sh
Unfortunately this does not run on debian/wheezy (which I use,
so I cannot tell if it works).
Note 4: I can really recommend the "Raspberry Pi(R) User Guide" (it's
a printed book. On real paper. With real ink); it has short
introductions to each topic that affects the Raspi: from
installing the hardware, setting up the OS, to Linux basics,
network installation, to basics in hardware programming, simple
electronics, and the python language (which is used for
hardware programming using the GPIO pins).
Last steps
----------
I disabled eth0 (it's not connected any more) and reconfigured my router
to assign the local IP address (I want to use) always to my Raspi, even
though DHCP does not work.
My Raspi is now accessible via the wireless USB device I installed.
There are SSH and HTTP daemons running. To access the internet it's not
using the wired ethernet port any more. The TCP/IP packages are passing
the air around my head.
This means: eth0 is free for other network purposes :)
Next Plan
---------
Configure my Raspi to send Magic-Packages into the local network. I want
to start my desktop PC using Wake-on-LAN (WOL).
TODO
----
Make Raspi's wlan DHCP client to run with any network (no static
address).
Feel free to copy, modify and/or link this document in any way you want.
And the most important thing:
Have fun
